Intex Krystal Clear Above Ground Filter – Backwash Valve Adapter for 1.5″ pipe

Intex, in their infinite wisdom do not provide the backwash adapter for their SX1500 filter kit.   I could not find one anywhere online, including the Intex part service.  Their service department suggested I purchase a hose kit from them and canibalise it the get the screw on piece and then source the pipe adapter from somewhere else.  This would put the pruice up at around C$45, and their online store said both parts were discontinued.

In an act of desperation, I decided to design one of my own.

Here is the result.

The screw threads had to be designed specifically for this piece as they are non-standard, as was the actual diameter of the part.   The 1.5″ adapter pipe had to also be designed, so I made it a flush fit into the screw collar removing the need for any further rubber seal.

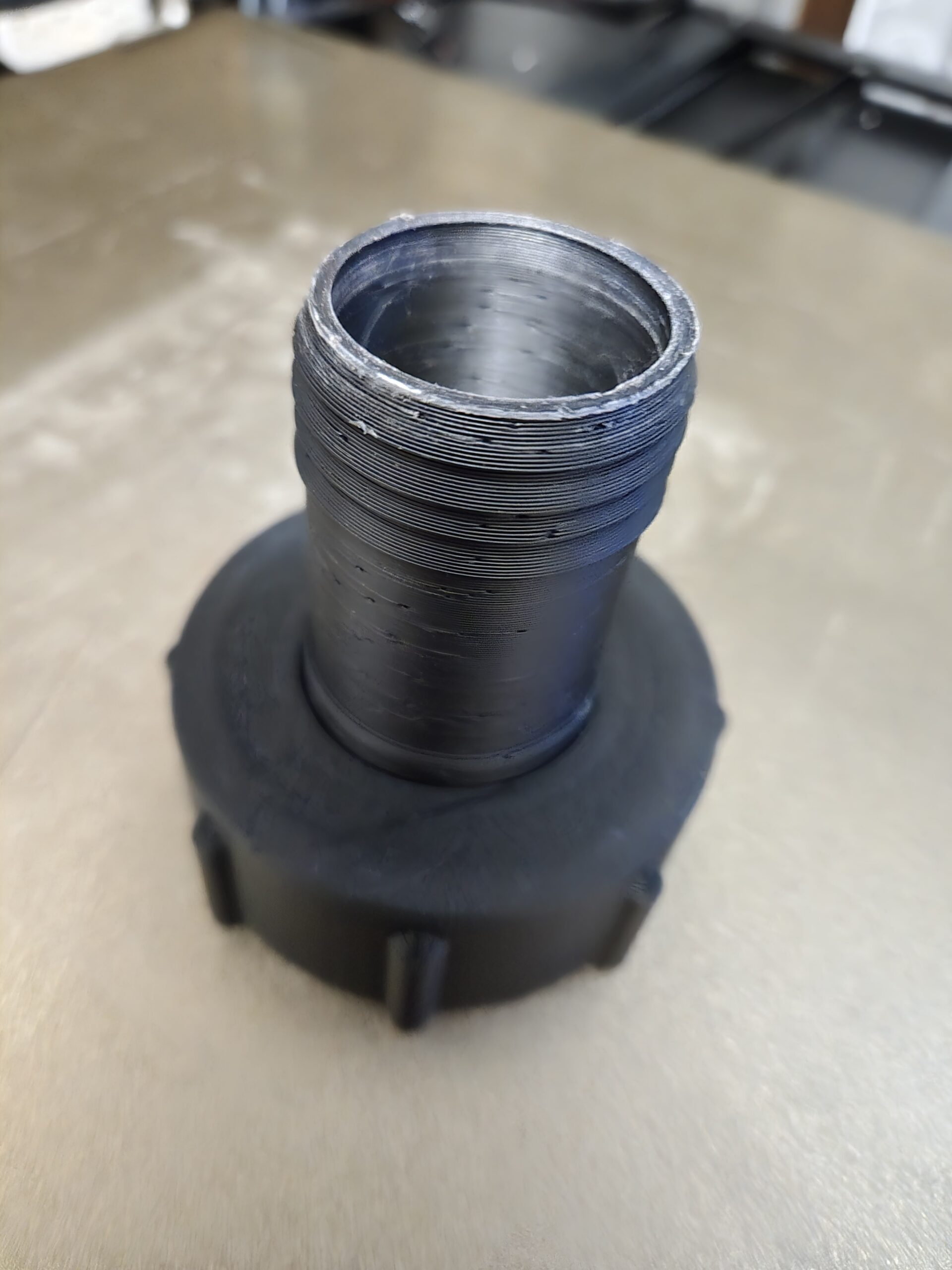

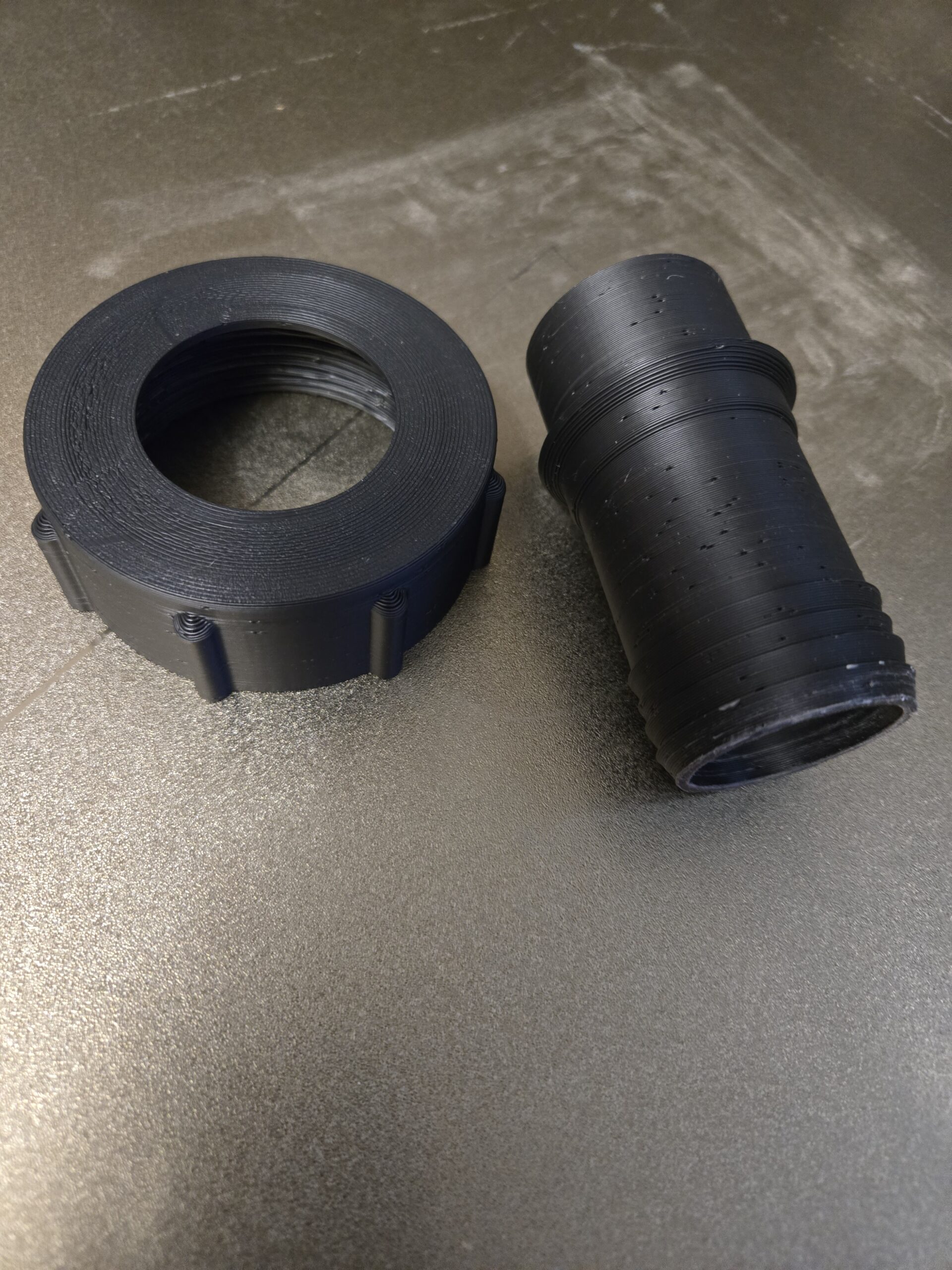

The final parts were printed in PLA+ and looked like this.

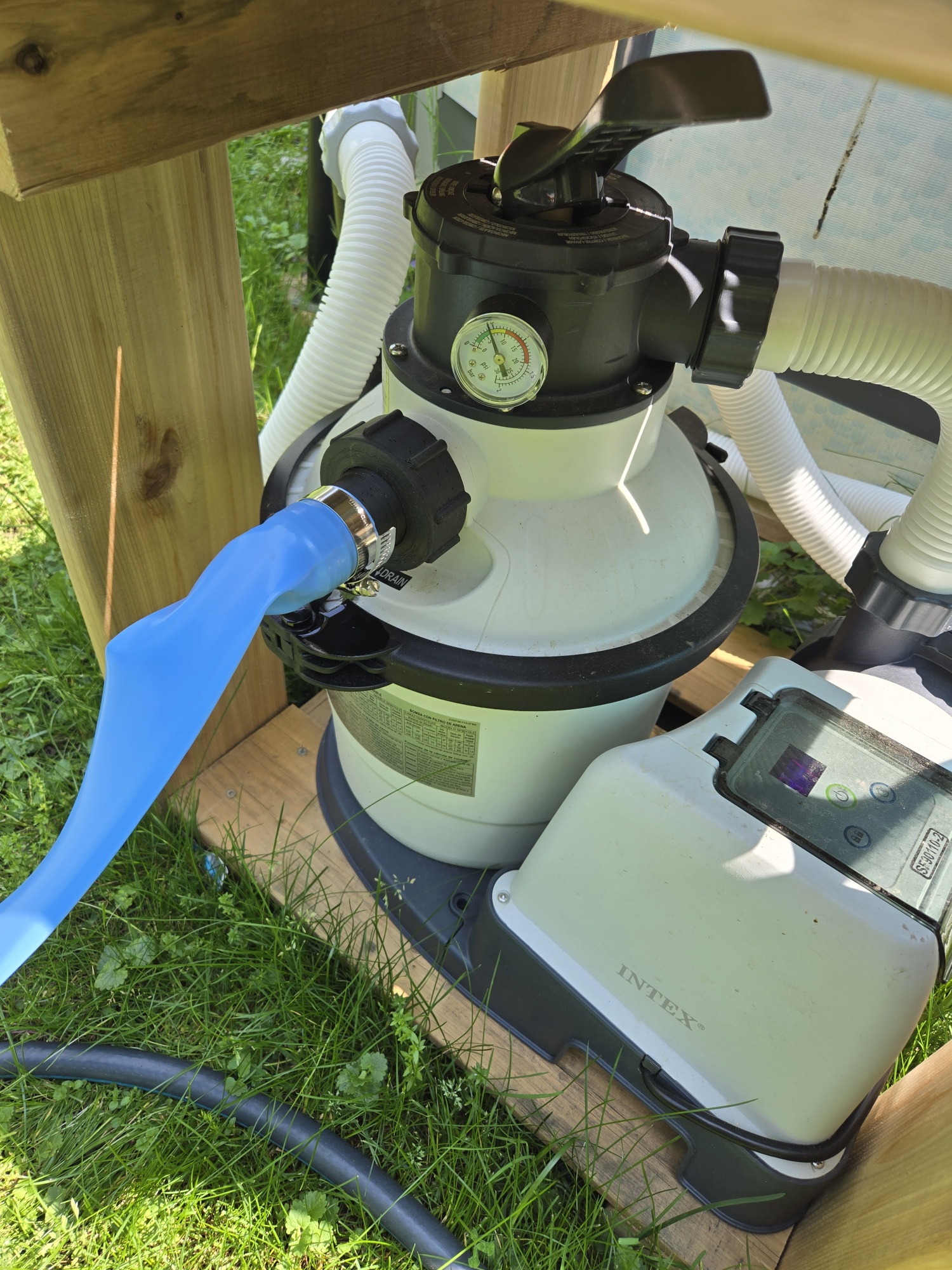

Backwash valve fitted to pump with outflow pipe.

If anyone else needs one of these, drop me a line and I’ll consider custom manufacture for you at a sensible price.
